Fab-Pak XHS-CM

Rotating H-Frame, Center Mounted Robot

Ready-to-Weld Automation from the Welding Experts®

725/ 1000

FANUC® CONFIGURATIONS

Fab-Pak XHS-CM

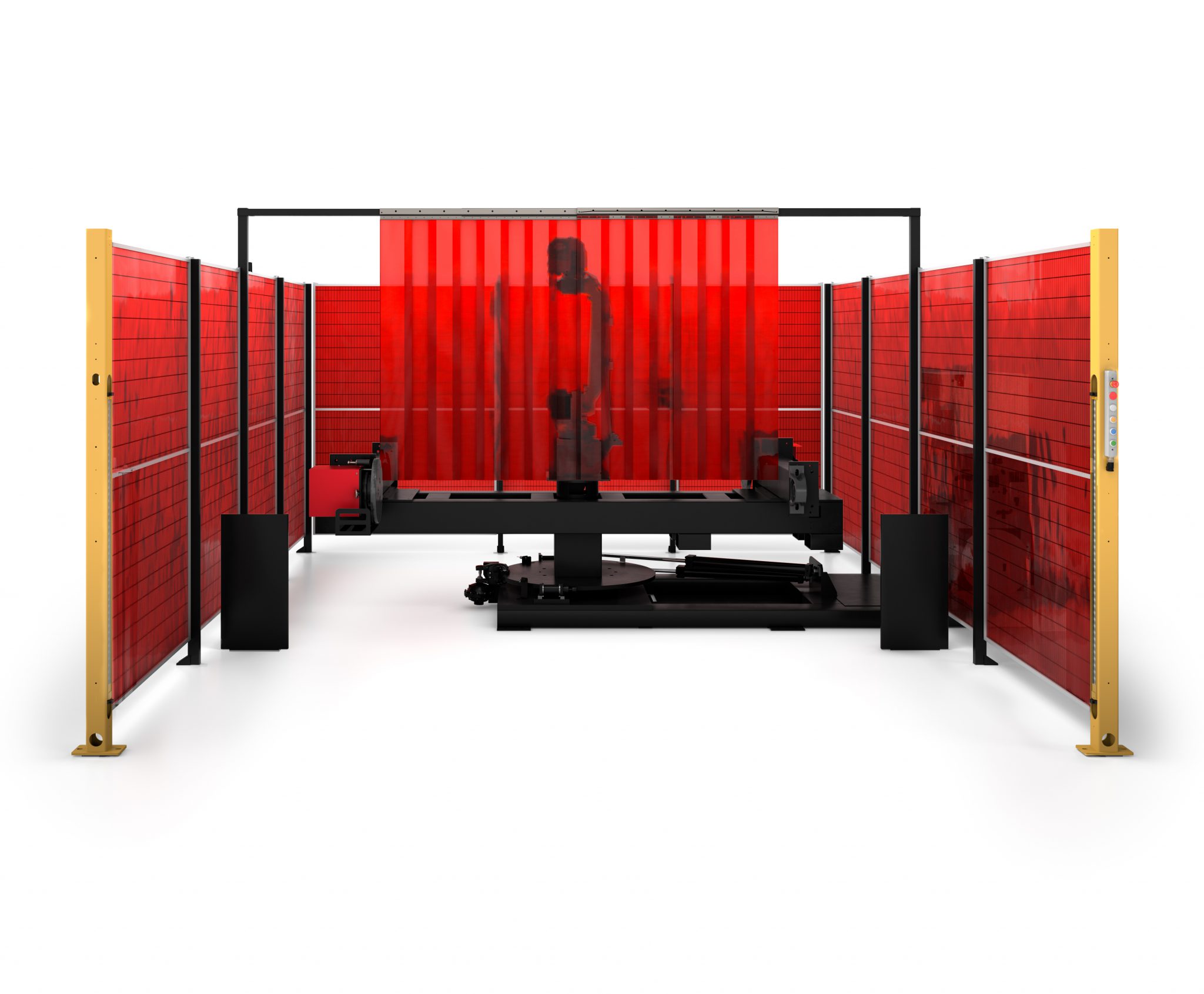

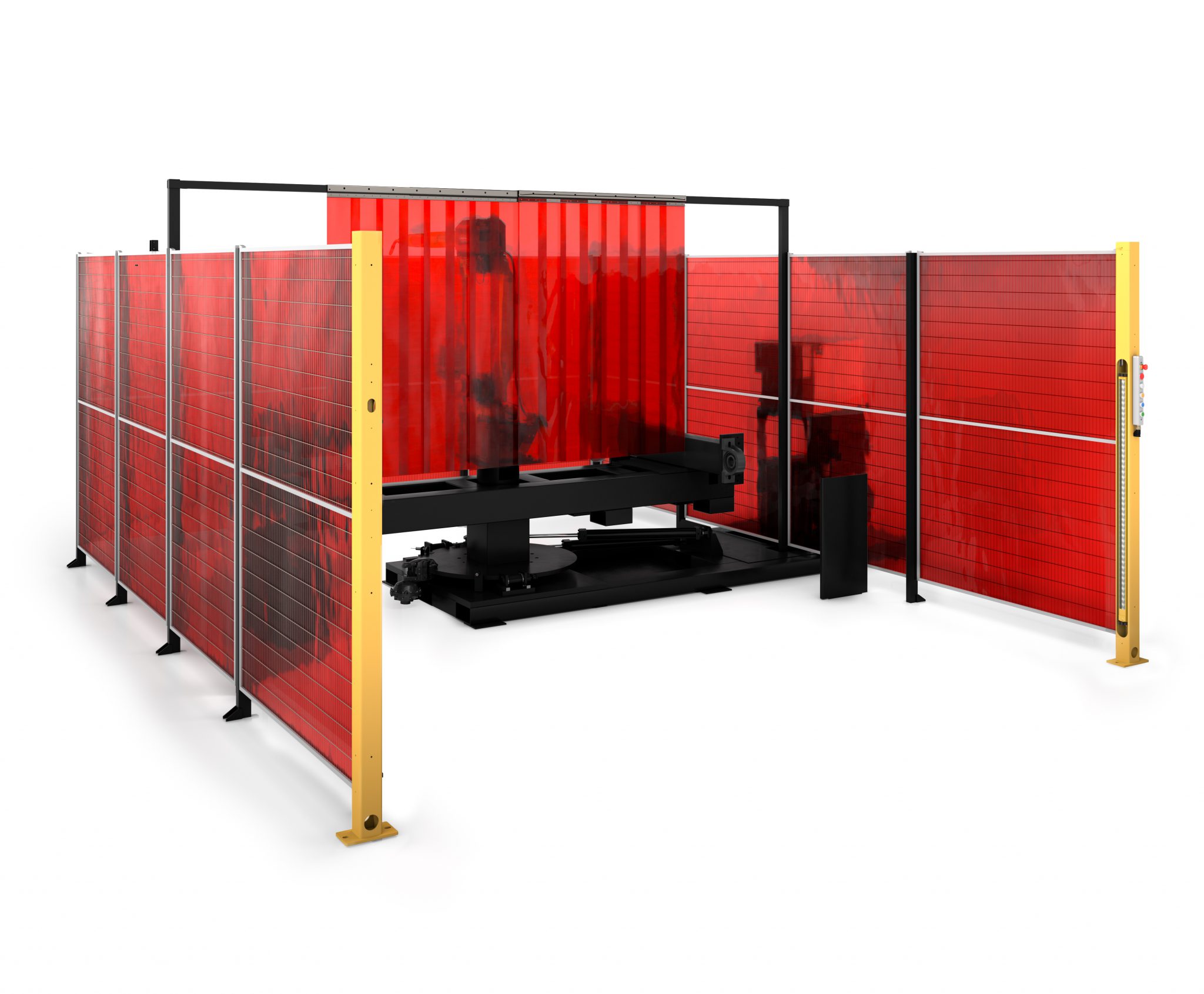

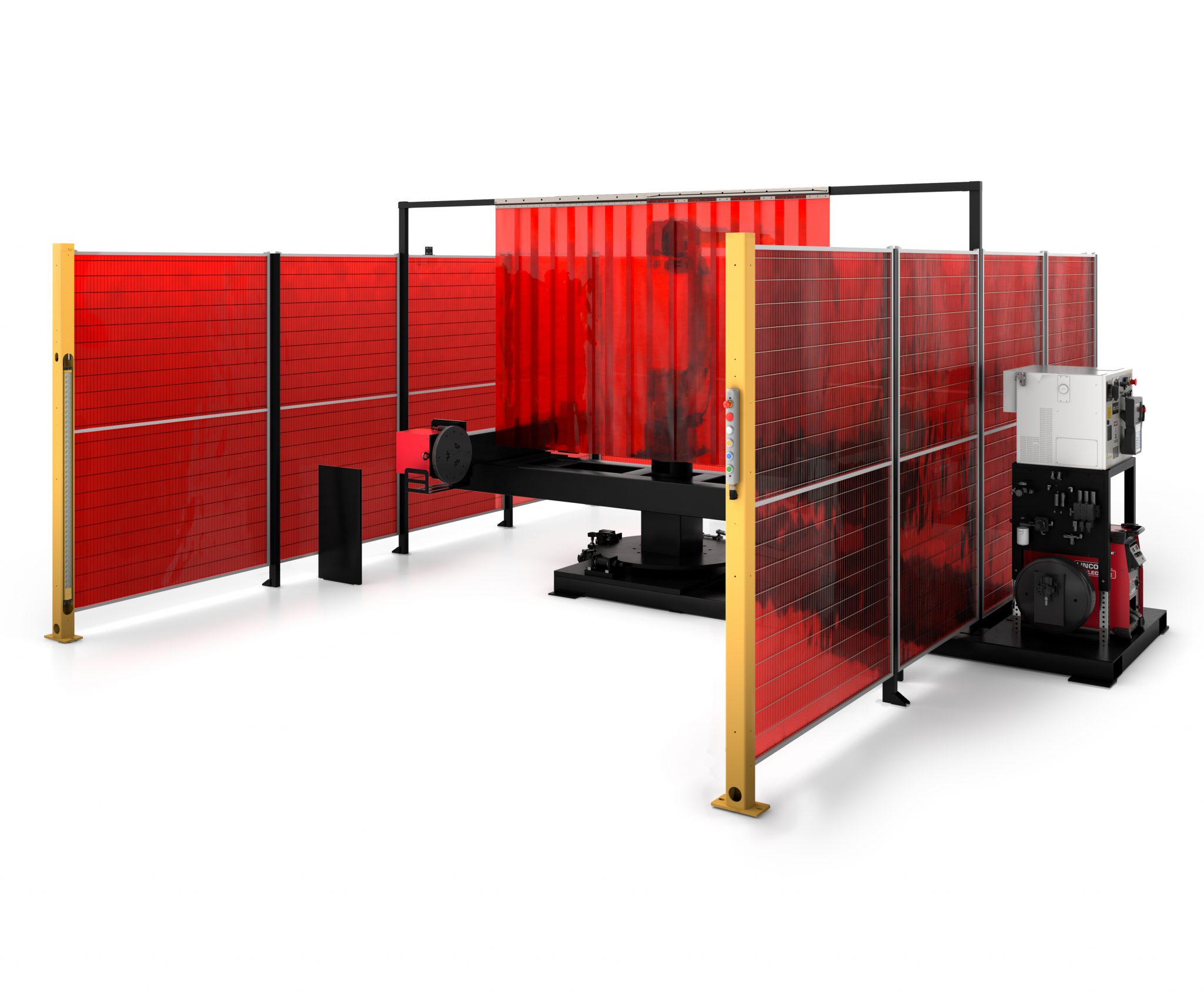

The pre-engineered Fab-Pak™ XHS-CM is a rotating H-Frame, center mounted dual zone arc welding robotic system. This arc welding solution is delivered ready-to-weld with a single load/unload point. The H-Frame positioner rotates 180 degrees. Each zone contains a headstock for easy reorientation of parts. This is a great solution for small to medium sized parts.

Fab-Pak XHS-CM robot arc welding system is a cost-effective way to automate your fabrication operations and improve productivity, efficiency, and profitability through advanced error handling, production monitoring, and self diagnostics.



Benefits

  • Short delivery and set-up times
  • Low investment
  • Less downtime with improved error handling
  • Ease of use
  • Improved safety
  • Portability
  • Small footprint
  • Increase production and create a competitive advantage
  • Improved weld quality
  • Decrease scrap and rework



Standard Features

  • Magnum® Pro Robotic Torch
  • Welding Robot
  • Autodrive® Wire Feeder
  • Push Button Control
  • Power Wave® Power Source
  • Wire Mesh Fencing with Weld Curtain
  • Full Operator Safety Package
  • Rotating H-Frame Positioner



Optional Features

  • Solid Sheet Metal Panels
  • Fume Extraction Equipment
  • Tooling
  • Robotic Torch Cleaning Station
  • Fab-Pak™ Cell Control
  • Power Distribution
  • Zero Friction Wire Delivery
  • Wire Detect Sensors
  • Installation

Fab-Pak XHS-CM Specifications

Fab-Pak Pre-Engineered Robotic Welding  System Highlights
